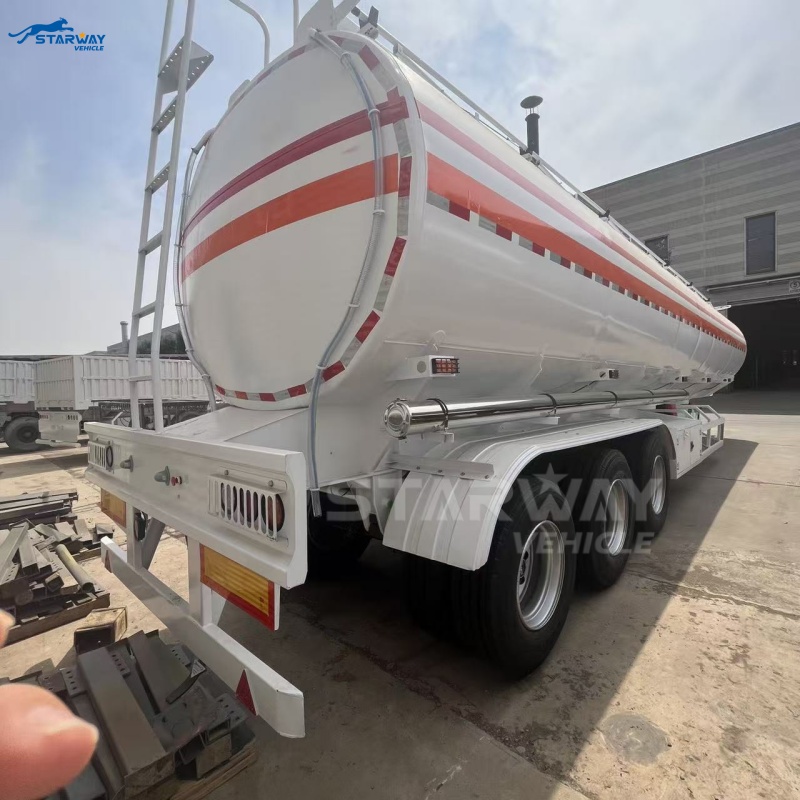

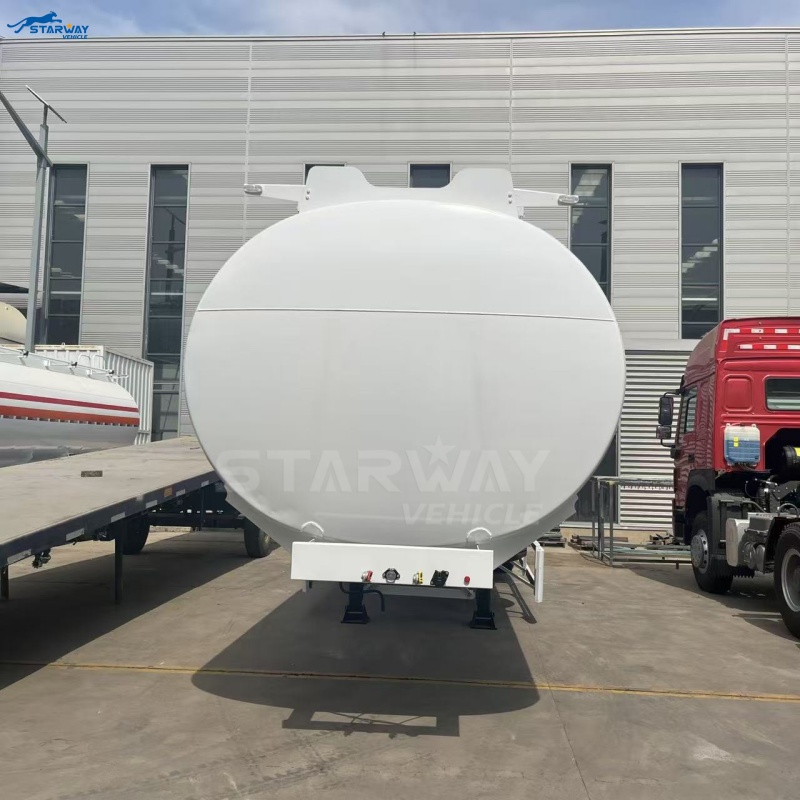

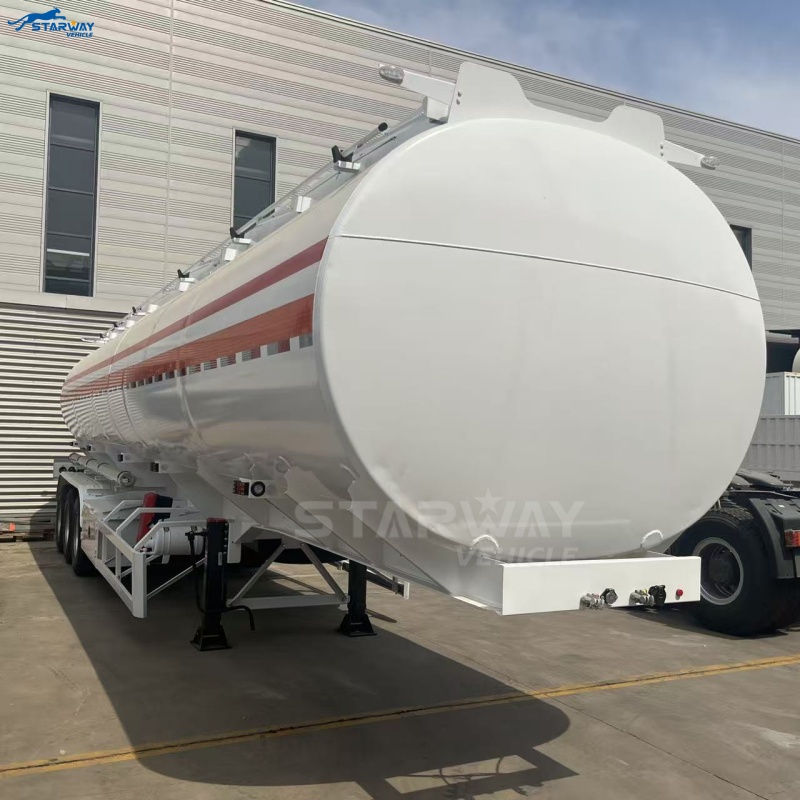

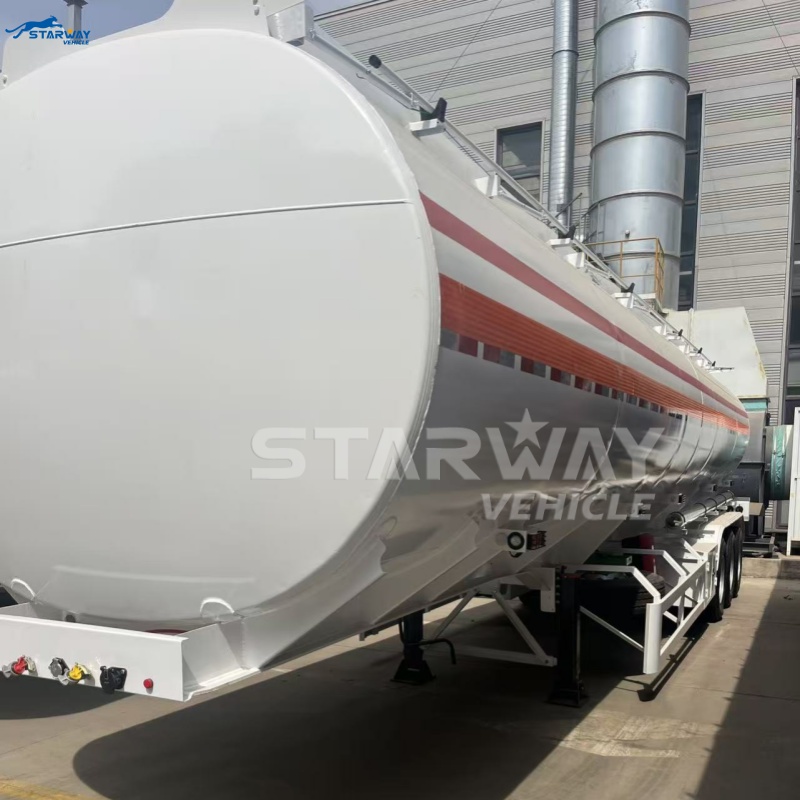

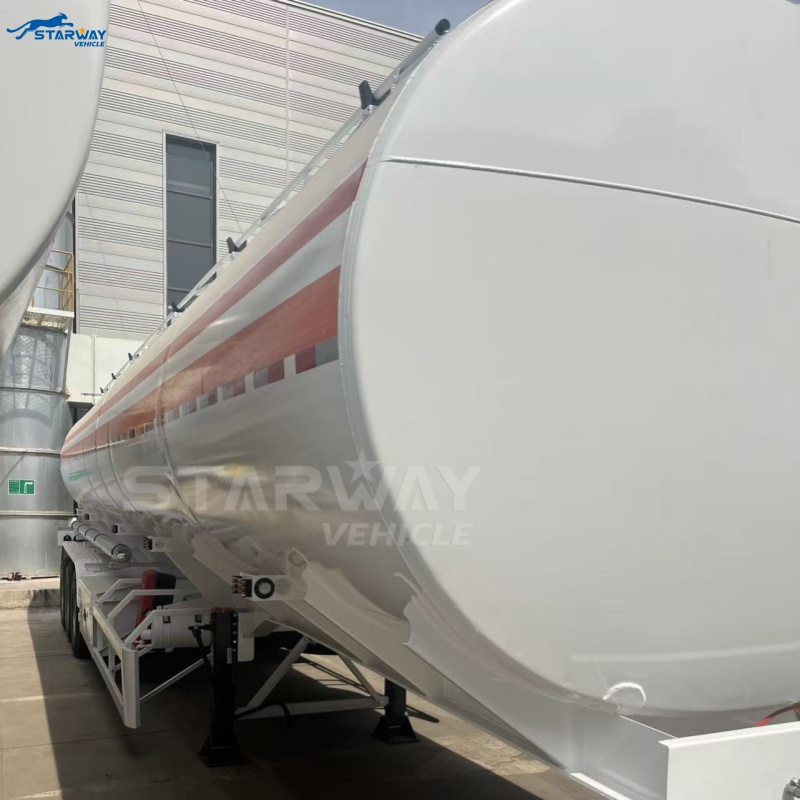

45,000Liters Diesel Tanker On Sale

Q235B/Q345B carbon steel
5XCT4aluminum5454
304 stainless steel
Round Shape or Ellipse
2 axles/ 3 axles/ 4 axle/ Multi axle
Safe and reliable operation
Tel:+8618364783601
Email:sales@starwayvehicle.com
WhatsApp:+8618364783601
Leave Message
PRODUCT DESCRIPTION

The Starway tri-axle tank trailer is designed with advanced engineering concepts, making it one of the most reliable and efficient solutions for liquid transportation.

With years of manufacturing experience and strict adherence to international standards, Starway provides tankers that not only meet but also exceed customer expectations.

photobank

We offer a wide range of customization options to suit different industry needs. The tanker’s volume can be tailored from 18,000 to 70,000 liters, with flexible configurations

available in 3-axle, 4-axle, or even 5-axle designs. These trailers are capable of transporting all types of liquid oils, including fuel, crude oil, palm oil, and other petroleum-based

products. By analyzing the type of liquid, loading equipment, and the intended payload, our technical team ensures the most economical and practical design for every customer.


Specifications

NameFuel tanker semi trailer
Trailer ModelRound Shape or Ellipse
Outside Dimensions11000mm-13000mmX2490mmX3950mm/3800mm-3900mm
Tare weightAbout 8-12.8T
Total Volume25m³-60m³
Material1.Q235B/Q345B carbon steel
2.5XCT4aluminum5454                                          3.304 stainless steel
Tanker Body Material1. 6mm/5mm Q235B/Q345B carbon steel

2. 7mm/6mm 5XCT4 aluminum 5454

3. 5mm/4mm 304 stainless steel
Axles13T/16T, FUWA/BPW/HuaJing brand
Axle Number2/3/4/ Axle or multi axle
Main Beam

Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm,

down plate thickness is 16mm-25mm; Material is Q345 manganese steel  .

Tire12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional)
King PinJOST brand 2.0 or 3.5 inch bolts type or Welding type
Support legsJOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed )
Rear ladderDismountable or foldaway
Wheelbase8050/7650+1300mm, 5060/6660/6960/6580+1310+1310mm
Spring leaf8/10/12/16 pieces
Manhole Cover2/3/4/5/6 piece Carbon steel API manhole cover ,500mm European standards
Brake Chamber6 double brake chamber
Electrical System24V, 7core socket, lights according to European standards
AccessoryOne tooling boxes ,Two spare tire carrier, Two fire extinguisher
Other toolsA waterproof toolbox. (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 2 unit cranking bar and instruction manual)
Discharge mouthdiameter is 280mm
Receptacle7ways (7wire harness)

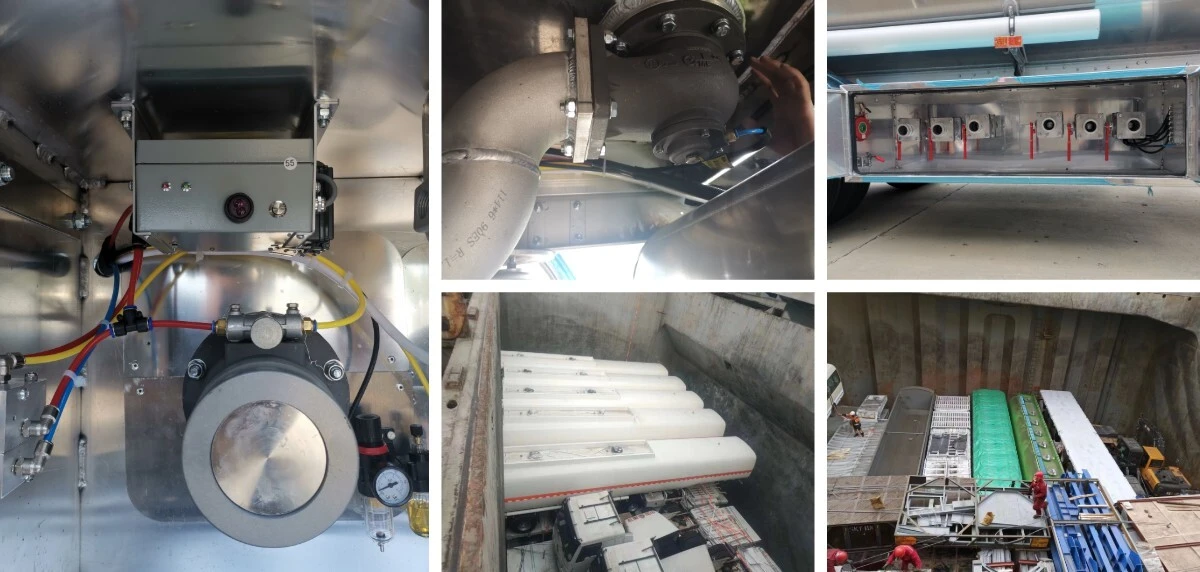

Details



OUR ADVANTAGE

Intelligence Production Equipment

Improve intelligent level, and create topping quality,STARWAY VEHICLE regards topping production line and equipment as development basis for over 30 years.

Independent technology R&D

It uses international and donestic leading technology s core for 30 years,is engaged in innovation and application of new material technology and technique,realizeds upadate.

Truck Trailer Examination

Perfect Inspection equipment and advaced inspection methods,over 200 inspection items,ensure product of STARWAY VEHICLE

Production Process

Absorbs industrial intelligence of foreign and domestic advanced production lines actively, promotes innovationand update of production equipment continuously.

Welding Standard

National first-level welder supervision, with Fuil automatic welding line.30minutes more weldina time per process

Steel Standard Design

Full Thickness High Strength Steel Titanium content 0.98% Ensure toughness and strength of Trailer frame and beam.

Design Standard

42 years of research and development by Australian engineers, rational analysis,42 toughness Rib Design

Parts Standard

Accessories Matched the standards of American Transportation Association(DOT)

ABOUT US

Shandong Starway Vehicle Co.,Ltd is China′s leading provider of semi trailer solution for transportation and logistic industry. The company has been awarded Provincial Municipal Meritorious Enterprise, Star Enterprise and Advanced Enterprise. As one of top ten Enterprises of truck trailer in China, Starway Vehicle is committed to offering high quality and reliable equipment and services for modern transportation. As the leading professional semi trailer manufacturer, we provide OEM/ODM semi trailer products to customers all over the world. Every year, Starway Vehicle exports thousands of different types of semi trailers worldwide. By 2024, we have established close business relationships with customers from all over the world.

  • 2.Special Shape Automatic Welding Process.jpg
  • 3..Tanker Trailer Plate Cutting Machin.jpg
  • 4.Tanker Trailer Plate Rolling Process.jpg
  • 5..Tanker Trailer Plate Automatic Welding Machine.jpg
  • 7.Tanker Trailer Steel Plate Bending Mahince.jpg
  • 8.Tanker Trailer X-RAY Room Examination.png
MESSAGE
Submit
SIMILAR RECOMMENDED
FAQ

Q: Are you a manufacturer or trading company?

A: We are a professional semi - Trailer supplier, we produce and export ourselves.
You are welcomed to visit our factory.

Q: What kind of payment do you accept?

A: We accept T/T and L/C at most.
If you want to use others payment, contact me for more info.

Q: What's your delivery time?

A: It depends on the products.

Products: Delivery time
Low bed trailer, Container trailer, skeleton trailer, side wall trailer: 10 days
Fuel tanker trailer, bulk cement trailer: 20 days
Special trailer, like detachable gooseneck trailer, hydraulic modular trailer: 30 working days
